Description

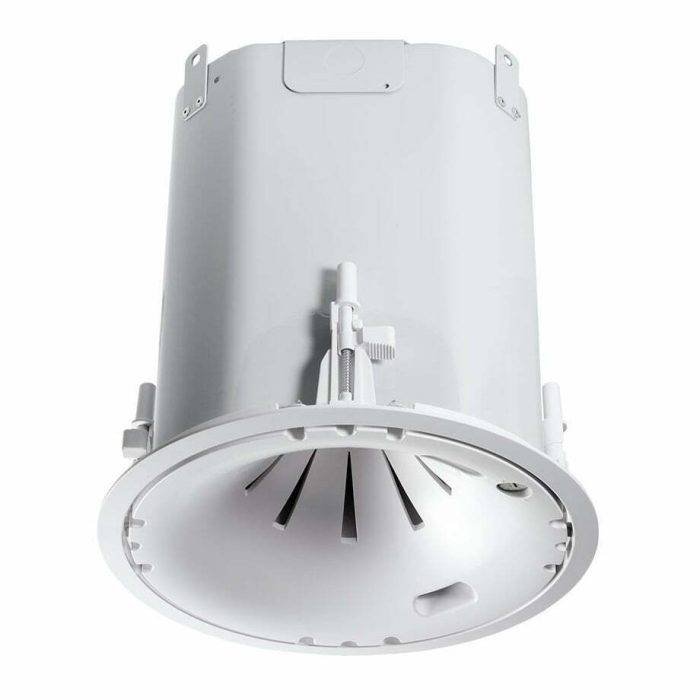

JBL Control 47HC features a narrow 75° coverage pattern ideal for use in highly reverberant spaces and high ceiling applications.
Frequency Range: 55 Hz – 17 kHz
Coverage Angle: 75° conical, constant directivity
Impedance: 8 ohms (in bypass mode)
Drivers: LF Driver: 165 mm (6.5 in) and HF Driver: 25 mm (1 in)
Maximum SPL (1m): 112 dB (low-impedance, 118 dB peak) 111 dB (top 70V/100V tap)
Power Rating: 150 Watts Continuous Program Power and 75 Watts Continuous Pink Noise (300W peak), 100 hrs
Dimensions (Diameter x Depth): 332mm Diameter x 351mm Diameter Depth (13.1 in x 13.8 in)
