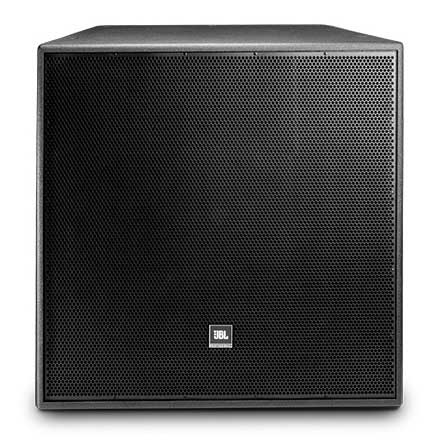

JBL PD Series Full-Range Loudspeaker PD564 Black
17,078 د.إ
JBL PD564 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control.
Frequency Range: (-10dB) 50Hz to 20kHz
Frequency Response: (±3 dB) 90Hz to 17kHz
Coverage Pattern: 60° x 40° and Nominal Impedance: 8 ohms
System Power Rating: Passive mode: 500W 2hrs, 300W 100hrs (IEC)
Dimensions(H x W x D): 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
Maximum SPL (1m): Bi-amp: LF: 133 cont (139 peak) HF: 132 cont (138 peak) Passive: 132 cont (138 peak)
LF Driver: 2031H 380 mm (15 in) driver and HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver
- Description
- Reviews (0)
Description
JBL PD564 is a Precision Directivity loudspeaker designed for applications.
Frequency Range: (-10dB) 50Hz to 20kHz
Frequency Response: (±3 dB) 90Hz to 17kHz
Coverage Pattern: 60° x 40° and Nominal Impedance: 8 ohms
System Power Rating: Passive mode: 500W 2hrs, 300W 100hrs (IEC)
Dimensions(H x W x D): 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
Maximum SPL (1m): Bi-amp: LF: 133 cont (139 peak) HF: 132 cont (138 peak) Passive: 132 cont (138 peak)
LF Driver: 2031H 380 mm (15 in) driver and HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver
