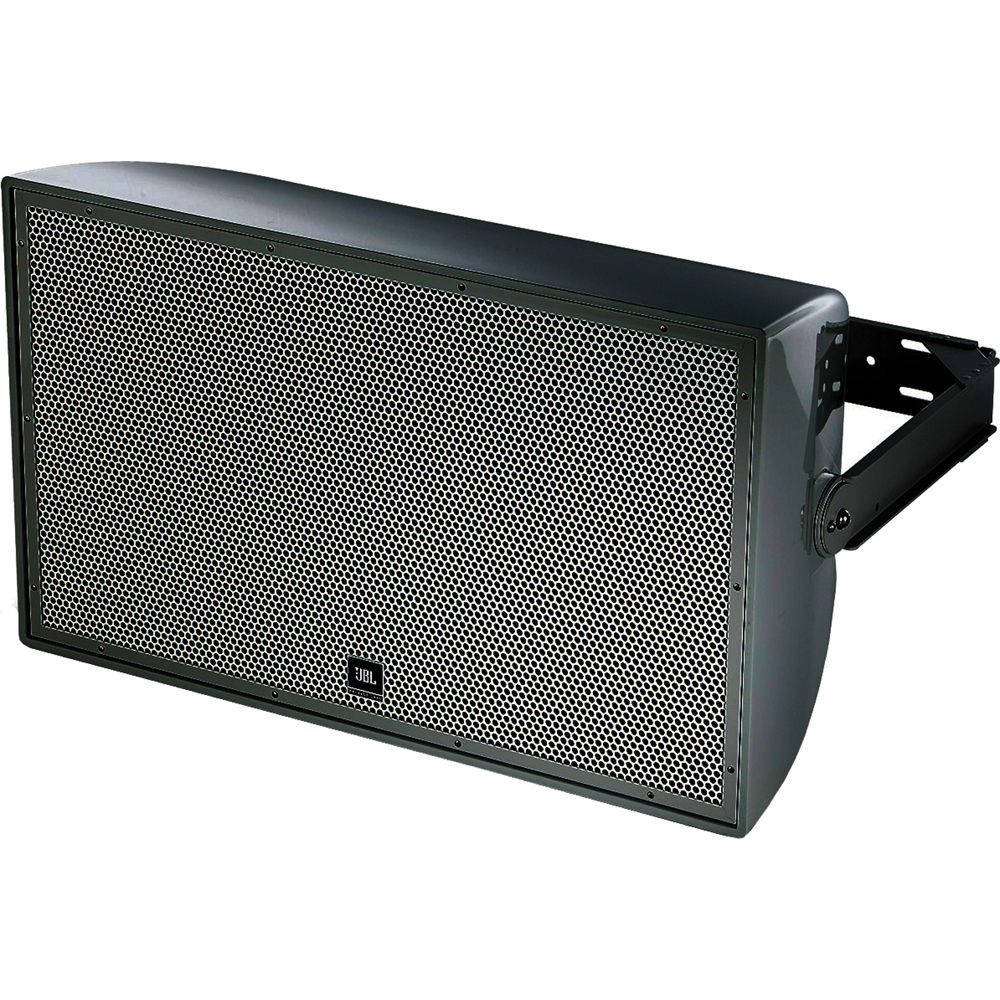

JBL AW566-LS High Power 2-Way All Weather Loudspeaker with 1 x 15″ LF

20,438 د.إ

The JBL AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can be used in either the vertical or horizontal orientation.

SKU: AW566-LS Categories: ,


JBL AW566-LS is Weather-Resistant, All Fiberglass Enclosure

EN 54-24 Compliant for life safety applications

60° x 60° Coverage

System Power Rating (IEC) 600 W (2400 W peak), 100 hrs

Maximum SPL 128 dB-SPL cont avg (134 dB peak)

Dimensions : 485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)

Impedance 8 ohms

2265H-1 Differential Driver® Low- Frequency Driver

2432H High-Frequency Compression Driver

Large PT Progressive Transition waveguide for excellent pattern control and low distortion

Available in Gray and Black finish

400 W, 70/100V Transformer Included

U-type Mounting Bracket Included
