Description

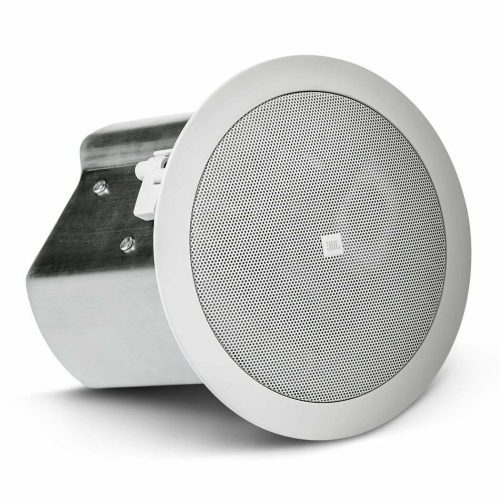

JBL Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented.
Frequency Response (-10dB): 74 Hz – 20 kHz
Power Rating: 60 Watts Continuous Program Power and 30 Watts Continuous Pink Noise (120W peak)
Transformer Taps: 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
Coverage Angle: 120° conical
Maximum SPL (1m): 101 dB (low-impedance, 108 dB peak) and 101 dB (top 70V/100V tap)
Impedance: 8 ohms (in direct/bypass 8Ω setting)
