Description

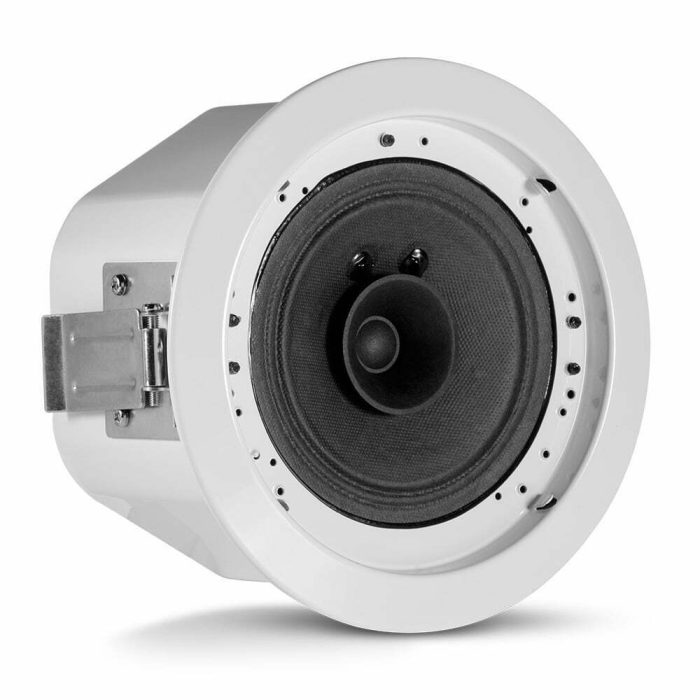

JBL CSS-15C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 127 mm (5 inch) full-range dual-cone driver.
Frequency Response (-10dB): 180 Hz – 20 kHz
Coverage Angle: 120° conical (2 kHz)
Maximum SPL (1m): 100 dB @ 1m (3.3 ft) average SPL (6W tap @ 100V)
Nominal Impedance: 6W @ 100V tap: 1667 Ω3W @ 100V tap: 3333 Ω1.5W @ 100V tap: 6667 Ω
Drivers: 127 mm (5 in) dual-cone driver, paper cone
Maximum SPL (1m): 100 dB (6W tap @ 100V) EN54: 88 dB (at 4m, 6W tap, 100V)
