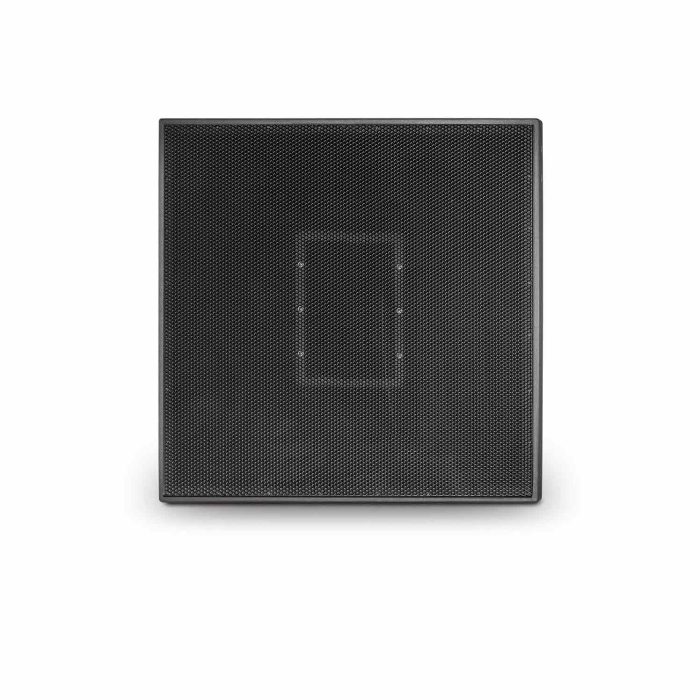

JBL PD764-WRX Very High Output Mid-High Loudspeaker System

74,005 د.إ

The JBL PD764i Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764i may be used in clusters with other PD family modules or singly as part of a distributed system.

SKU: JBL PD764-WRX Categories: ,


JBL PD764-WRX Very High Output Mid-High Loudspeaker System PD764-WRX with weather protection

60° by 40° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation within an array.

IFS™ Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.

Dual 2432H compression drivers with 3” diaphragms

Dual CMCD-82H 8” horn loaded cone mid-range drivers provide 6 dB greater output than traditional designs.

Frequency Range 150 Hz to 16 kHz

Dimensions 67.00 X 78.00 X 78.01cm
