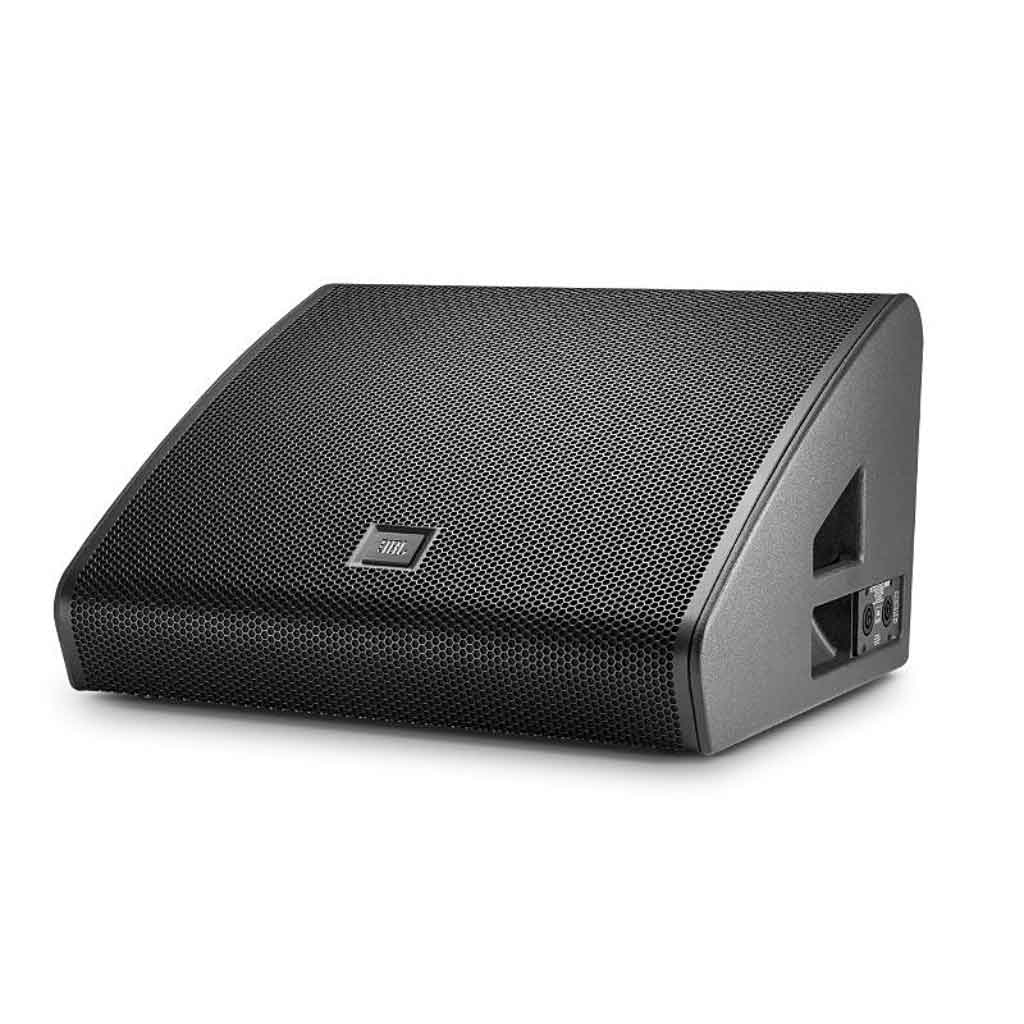

JBL VTX M22 Dual 12-inch Professional Stage Monitor

20,373 د.إ

JBL VTX M22 is Elegant, low profile, compact design suitable for touring and high profile broadcast applications covers 60 by 60

SKU: JBL VTX M22 Categories: ,


JBL VTX M22 offers 60×60 High Frequency Waveguide featuring JBL’s patented Image Control Waveguide Technology

Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment

Frequency Range (-10dB) 45 Hz – 19.5 kHz

Coverage Pattern (-6 dB) Horizontal: 60; Vertical: 60

Nominal Impedance Passive: 4 ohms Active LF: 4 ohms Active HF: 8 ohms

System Input Power Rating Passive: 1500 W Continuous (IEC / 100 hour) Active: LF: 1500 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour)

Maximum SPL (1m) 138 dB (Preset: VTX M22 FR)

Dimensions (H x W x D) 380 mm x 671 mm x 555 mm (15 in x 26.4 in x 21.8 in
