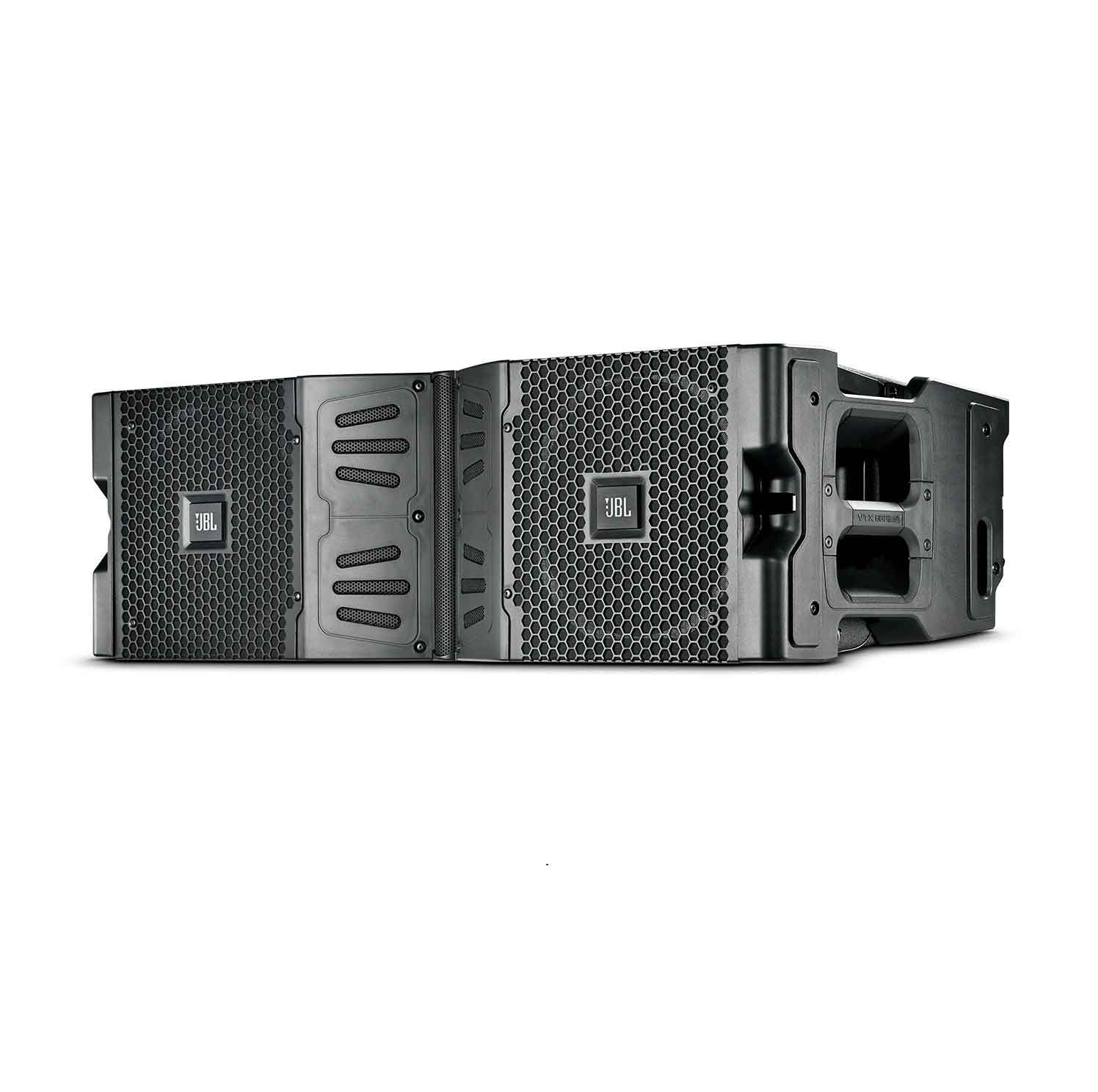

JBL VTX V20 3 Way Line Array Element Loudspeaker

48,100 د.إ

JBL VTX V20 features the advanced technology and extraordinary performance of the groundbreaking VTX V25 in a smaller format, high power density 3-way system complemented by a new suspension system that provides efficient transport, fast setup and precise configuration. All VTX V20 components have been specifically engineered to provide stable 105 degree horizontal coverage and effective line source array coupling in the vertical plan

SKU: JBL VTX V20 Categories: ,


JBL VTX V20 has Differential Drive Technology

Frequency Range (-10dB) 60 Hz – 20 kHz (Preset: VTX V20)

Horizontal Coverage (-6 dB) 105 degrees nominal (300 Hz – 16 kHz)

Maximum Peak Output 139 dB (Preset: VTX V20)

Nominal Impedance Active: LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms     Passive: LF: 16 ohms MHF: 8 ohms

Dimensions (H x W x D) 280 mm x 911 mm x 402 mm  11 in x 35.9 in x 15.8 in

4th generation advanced high frequency waveguide
