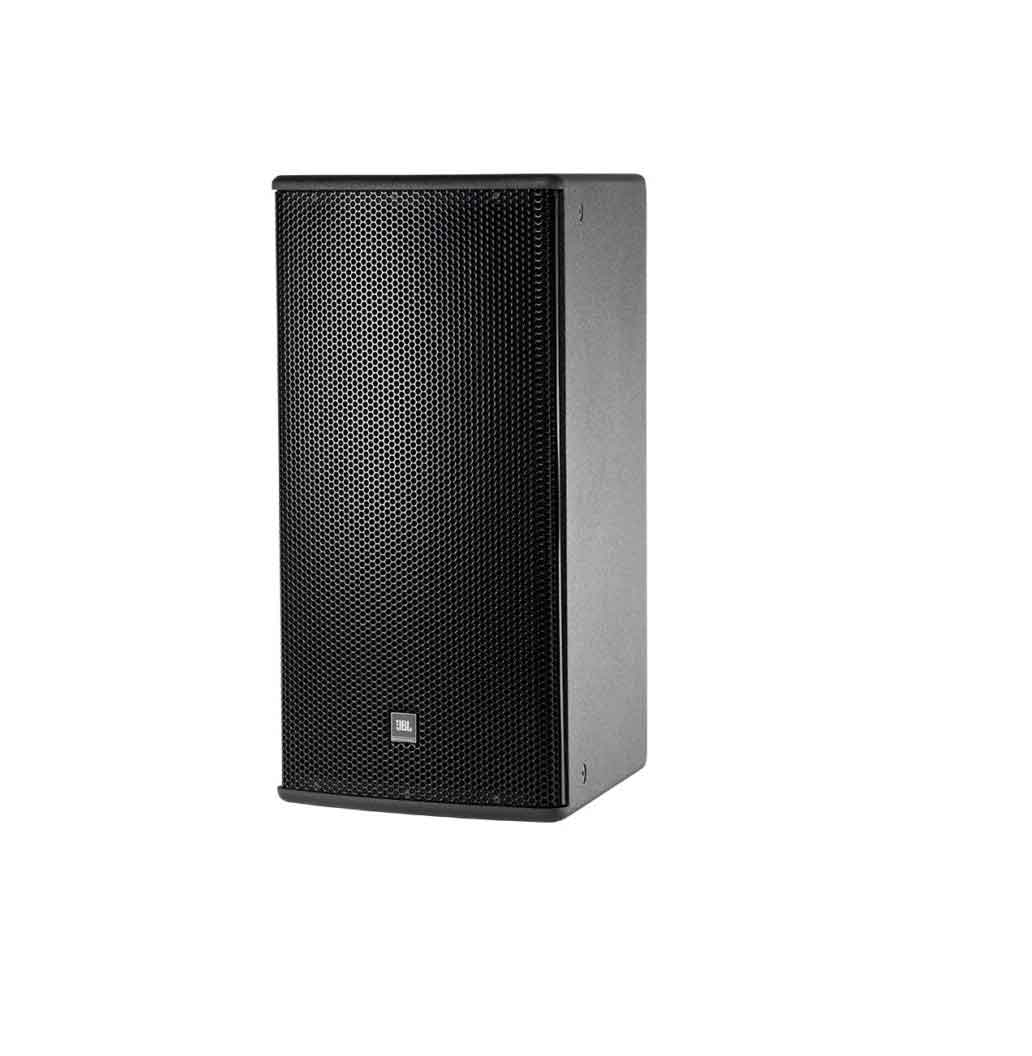

The JBL AM7212/95 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
JBL AM7212/95-WRX High Power 2-Way Loudspeaker with 90° x 50° Coverage, WRX Weather Resistant Speaker
JBL AM7212/95 has 2262H Differential Drive Low- Frequency Driver
2432H High-Frequency Compression Driver
Frequency Range (-10dB) 36 Hz – 20 kHz
Frequency Response (±3 dB) 42 Hz – 18 kHz
System Power Rating Passive mode: 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) Bi-amp mode:LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:123 dB-SPL cont avg (129 dB peak)
Coverage /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60°
Nominal Impedance 8 ohms
