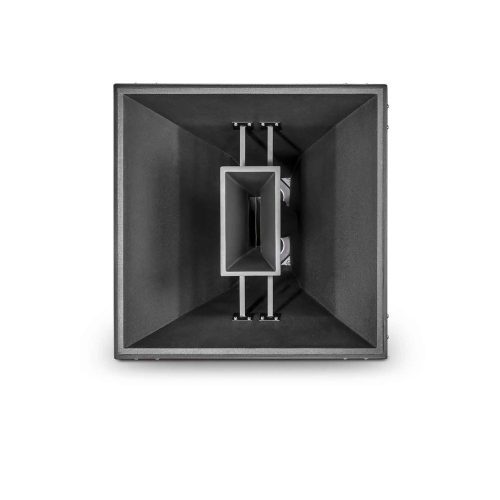

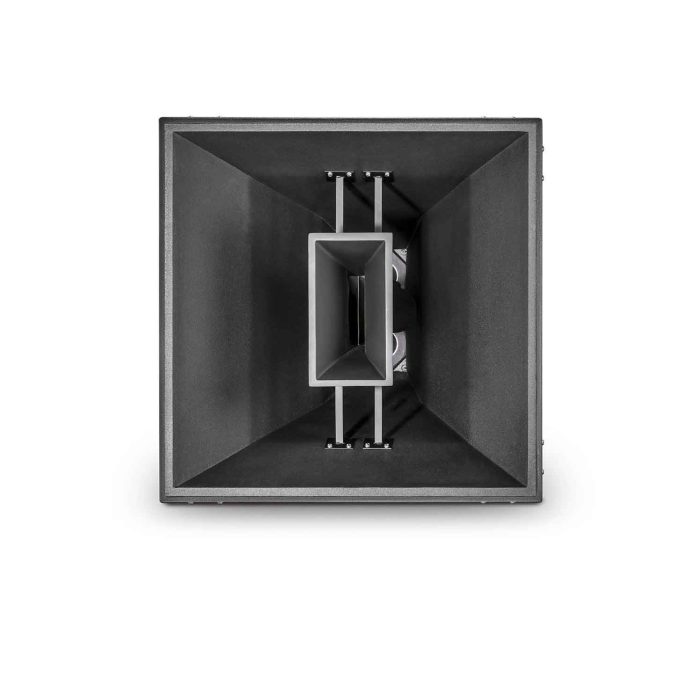

JBL PD764i-WRX Loudspeaker with Extreme Weather Protection

54,246 د.إ

The JBL PD764i-WRX Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of single-driver designs.

SKU: JBL PD764i-WRX Categories: ,


JBL PD764i-WRX offers 60° by 40° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation within an array.

Frequency Range (-10dB) 200 Hz to 19.5 kHz

Frequency Response (±3 dB) 230 Hz – 18.5 kHz

Maximum SPL (1m) LF – 141 dB Peak; MHF – 143 dB Peak

Power Rating (AES) LF – 1000 W (4000 W Peak); MHF – 400 W (1600 W Peak)

Impedance 4  ohms

Dimensions 38 X 34 X 34 CM

IFS Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.

Dual 2432H compression drivers with 3” diaphragms

Dual CMCD-82H 8” horn loaded cone mid-range drivers provide 6 dB greater output than traditional designs
