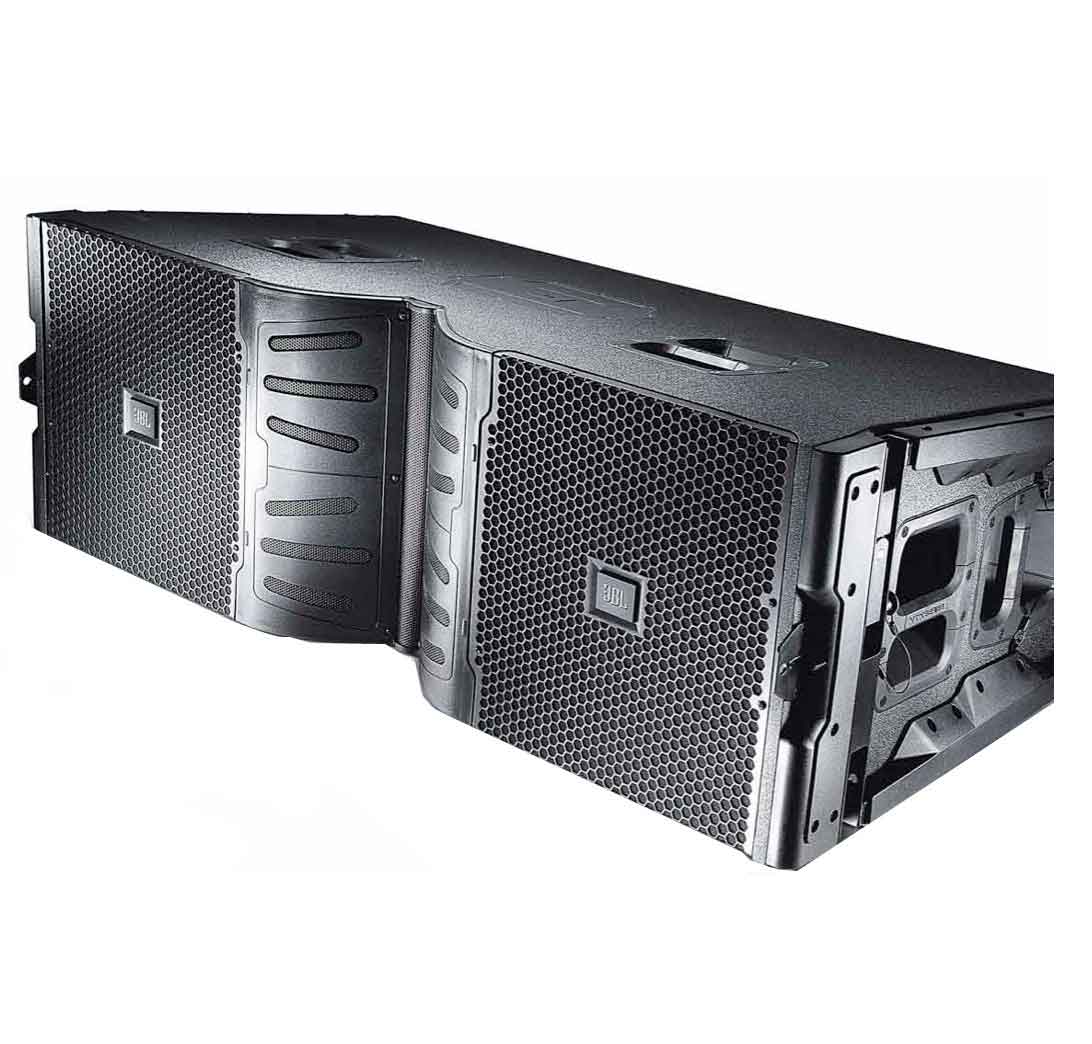

The JBL VTX V25-II-CS is a full size 3-way high-directivity line array element that includes a new 4th generation waveguide which improves long throw performance, wavefront control, and is an improved power match for the Crown IT4x3500HD. The transducer compliment for VTX V25-II-CS is two 2000W 15″ Differential Drive woofers mounted in die cast aluminum baffles, four 8″ Differential Drive midrange transducers firing through a patented (RBI Radiation Boundary Integrator), and three revolutionary D2 Dual-Diaphragm Dual-Voice-Coil Compression Drivers loaded onto the newly designed waveguide. Patented rigging, Crown I-Tech HD amplification with BSS OmniDriveHD V5 Processing, and JBL HiQnet Performance Manager™ configuration and control software complete the system package.
JBL VTX-V25-II-CS Full Size 3-Way Loudspeaker High-Directivity Line Array With Compression Suspension System
JBL VTX-V25-II-CS Full Size 3-Way High-Directivity Line Array With Compression Suspension System
New 4th Generation HF Waveguide technology
Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver
Cardioid-Arrayable Subwoofer Enclosure Models
Frequency Range (-10dB) 35Hz – 18 kHz (Preset: VTX V25-II)
Horizontal Coverage (-6 dB) 90 degrees nominal (200 Hz – 16 kHz)
Maximum Peak Output 141 dB (Preset: VTX V25-II)
Nominal Impedance LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms
Dimensions (H x W x D) 414 mm x 1223 mm x 614 mm 16.3 in x 48.2 in x 24.2 in
