MT 7308 is a power amplifiers manager unit of the DXT 7000 Voice Alarm system, suitable to control up to 8 additional power amplifiers and several speaker lines, according to EN 54-16 norm. It works connected to the MU 7100EN master unit. When speaker lines drive high power loads, it could be convenient to optimize the system configuration by using one or more dedicated power amplifiers dimensioned according the loads involved.

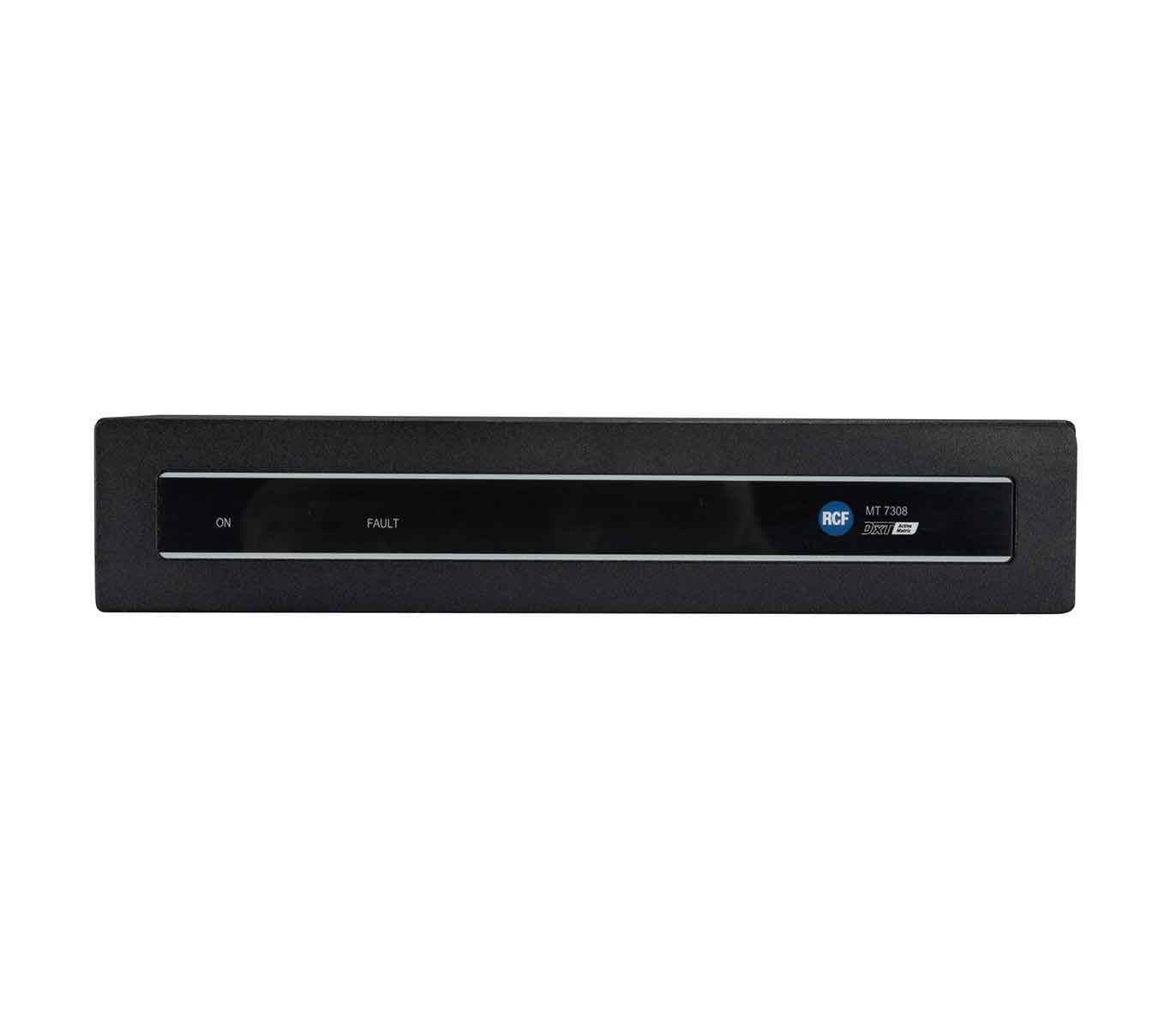

RCF MT 7308 Power Amplifier Manager
RCF MT 7308 Power Amplifier Manager Manages up to 8 power amplifiers
500 W maximum power of each amplifier
Up to 8 zones managed
PC software configuration
NUMBER OF ZONES MANAGED: 8
MAX NUMBER OF UNITS CONNECTABLE: 2 (for each MU 7100EN)
MAX POWER OF EACH EXTERNAL AMPLIFIER: 500 W RMS
44 mm / 1.73 inches
0.98 kg / 2.16 lbs
215 mm / 8.46 inches
