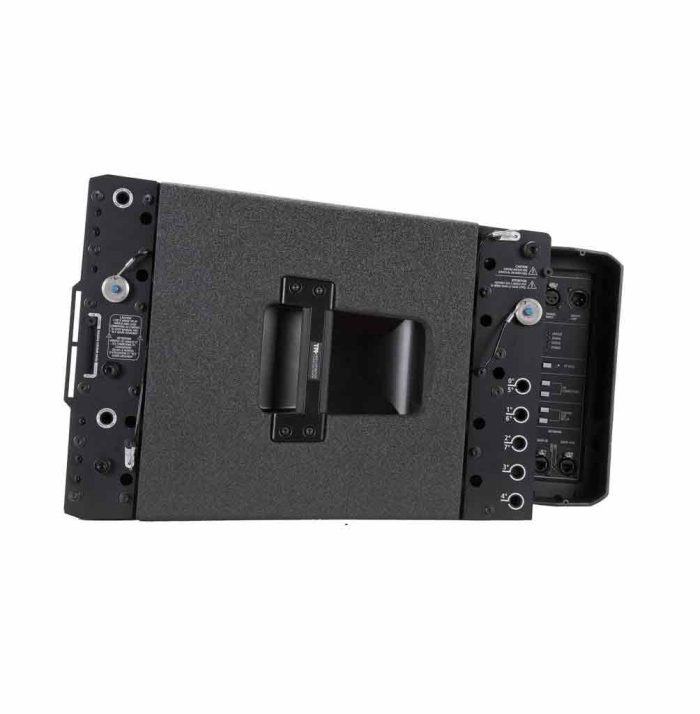

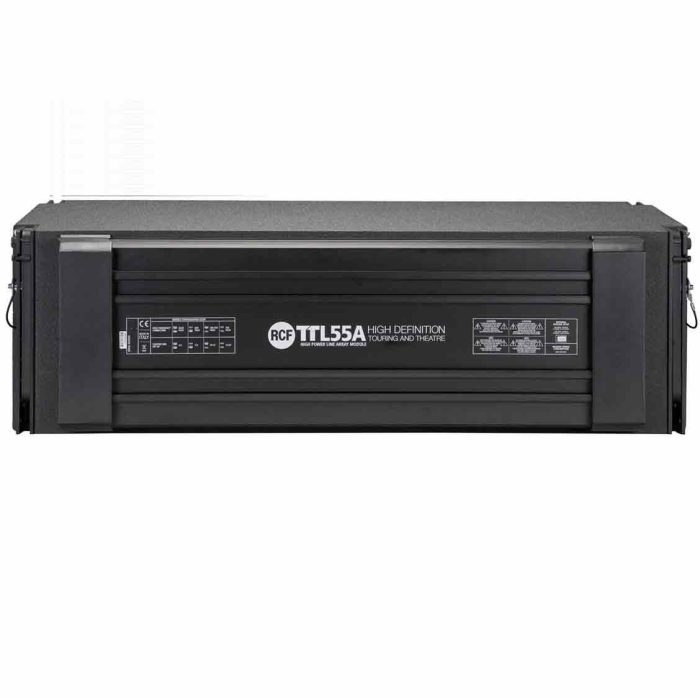

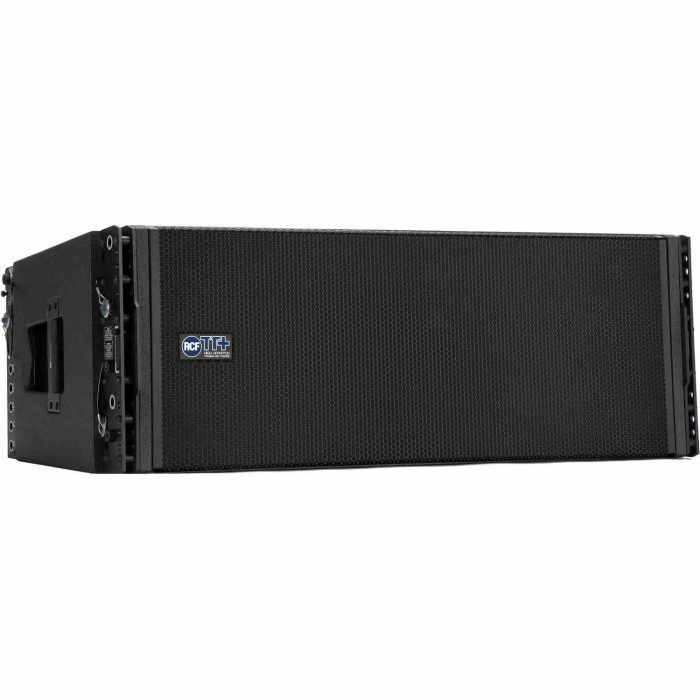

RCF TTL55-A Active 3-Way Line Array Module

42,263 د.إ

RCF TTL55-A has Tour-grade cabinet and mechanics
3500 Watt, 4 way amplification
6 high-power neodymium transducers
High-quality analog input board
96kHz, 32-bit DSP processing
Remote monitoring and control
Maximum output per size on the market

SKU: TTL55-A Categories: ,

Description

RCF TTL55-A Active 3-Way Line Array Module
Acoustic
Frequency Response: (@ -3 dB): 50Hz – 20kHz
Max SPL: 143dB
Horizontal coverage angle: 90°
Vertical coverage angle: max 7°
Woofer: 2×12″ neo, 4″ voice coil

Processor Section:
Crossover frequencies: 320 Hz/1300 Hz
Protections: thermal, excursion, rms

Amplifier Specifications:
Total power: 3500W
High frequencies: 500W
Mid frequencies: 1000W
Low frequencies: 2x1000W
Cooling: convection/forced

Physical Specifications:
Dimensions: 40″ W x 15″ H x 21.6″ D (1020 x 380 x 550mm)
Net Weight: 147.7lbs (67kg)
